GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable

Name: GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable
Brand: Jiqian
Price: 100 USD

Buy cheap GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable product

Brand Name : Jiqian

Model Number : GYFTZY

Place of Origin : China

MOQ : 2km

Price : 100-500usd/km

Packaging Details : wood drum

Fiber Model : G652D Or G657A

Waterproof : Yes

Suitable Temperature : -40℃ +70℃

Useful : FTTX

Type : GYFTC8S53

structure : layer-stranding cable

Network : FTTH FTTX

characteristic : LSZH sheath,flame retardant

Contact Now

GYFTZY Metal free unarmored G652D flame retardant LSZH jacketed 4 core single mode fiber optic cable

GYFTZY fiber optic cable - completed with LSZH sheath

Application

1. used for power transmission system,

2. excessive thunder areas and high electromagnetic interface.

3. used in high-voltage area for long distance aerial or duct application

GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable

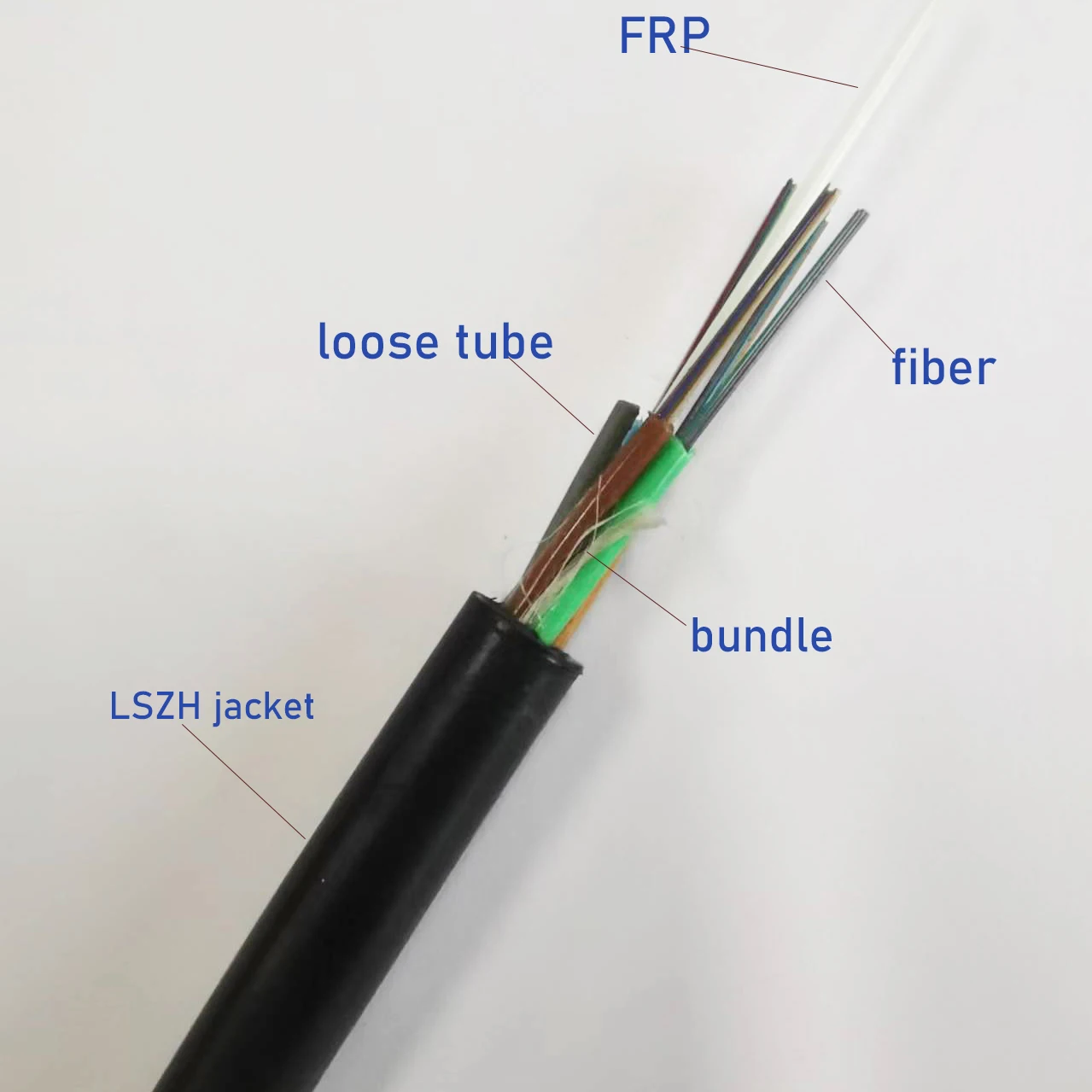

Product Construction:
1. Fiber:
2-288 fiber
Multi-loose tube gel-filled
2. Central Strength Member:
Fiberglass reinforced Platic (FRP).
3. Outer Jacket:
LSZH material for flame retardant

Features:
1. Excellent mechanical and temperature performance.
2. 100% core filling water prevent cable jelly to ensure the cable watertight.
3. Crush resistance and flexibility.

Specification

Product Name	GYFTZY Metal free unarmored G652D flame retardant LSZH jacketed 4 core single mode fiber optic cable
Fiber Count	2-288 Fibers,can be customized according to customers' requirement
Construction	LSZH sheath + FRP strengthen
Fiber Type	Singlemode G.652D / G.657A1
Outer Jacket Material	usually PE,plastic,LSZH,can be customized
Application	overhead,aerial,duct,high-voltage area, thunder areas and high electromagnetic interface
Diameter	depends on quantity of fiber and structure
Cable Length	1km,2km,3km,5km per drum,can be customized
Test Wavelength	1310/1550nm
Operation Temperature	-40℃ to +70℃
Strengthen	FRP in the centre of the fiber optic cable
Color	usually black,can be customized

Fiber Parameter

Item		Unit	Specification
Fiber Type			G. 652
Mode field diameter	1310nm	μm	9.2 ± 0.4
Mode field diameter	1550nm	μm	10.4 ± 0.8
Cladding diameter		μm	125.0 ± 1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	242 ± 7
Coating/cladding concentricity error		μm	≤12
Cable cut-off wavelength		nm	≤12
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable Images
